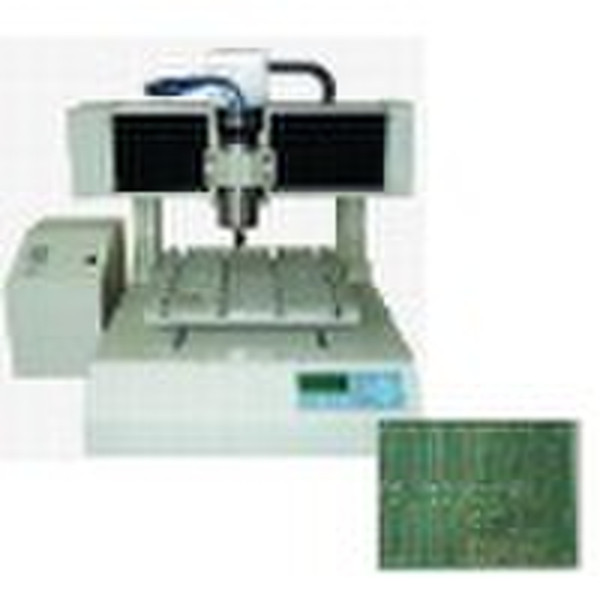

PCB drilling machine

drilling machinefeatures: 1. Integral cast frame with tempering stress removal ensure the durable solid-body unchanged for 10 years. 2. High-power spindle motor and NSK bearings makes sure stronger cutting capability. 3. Imported ball screw ensure high accuracy. 4. Compatible with all kinds of popular software like Type3, Artcam, Mastercam, UG, PRO-E, WenTai etc. 5. Strong expansion properties: Servo motor, high-power spindle motor and dust extractor are optional. 6. Beautiful machinery, easy to operate.Technical parameters: Model: DX03 Working area(x, y, z): 300*250*60mm Working table(x, y, z): 320*300*80mm Spindle motor: 800W converter-driven water-cooled Guideway: Cylindrical guideway Drive motors: Step motor Transmission: Ball screw Working voltage: AC220V+-10%/50Hz Spindle Rotary Speed (RPM): 24,000 rpm/min X, Y, Z Positioning Accuracy: 0.02mm Repetitive positioning accuracy: 0.01mm Max speed: 6m/min Engraving Tools: 3.175/4/6mm Command system: HPGL, G-code, CAD, PLT, NC Operational environment: Temperature: 0-35, humidity: 10%-70% Operating System: Ncstudio control system with in Win98/Win2000/XP Appearance Size(mm): 600*500*500mm Packaging size(mm): 800*800*700mm Weight(KG): 80Kg
