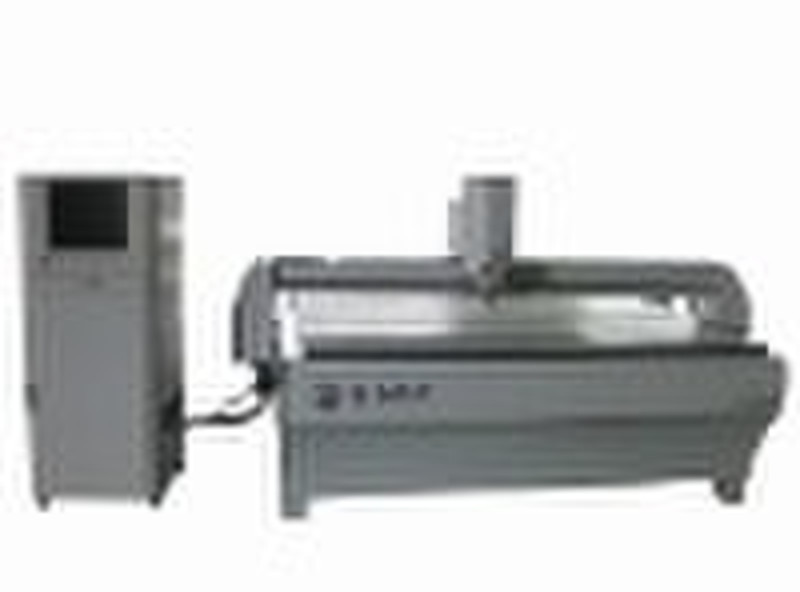

cnc cutting machine for aluminum plate

Application: This type of cnc cutting machine adopts the structure similar to German CNC board processing center, it is a professional solution in ordinal processing such as engraving, milling, cutting and slotting for non-ferrous plate, synthetic plate, timber board and artificial-stone board. It is widely applied in below fields: 1. Panel wall: cutting process for aluminum plate, plastic aluminum plate, honeycomb-shaped plate, extruded aluminum section etc. 2. advertisement: adverting signs, acrylic board cutting, compression mould, various material decorations. 3. other business: 3D ornamental engraving process, wave-shaped board process, various irregular material ripping, copper plate, PVC board, MDF board and artificial stone process. Features: 1. The case-typed machine body and the beam are removed the inside stress by heat treatment, and are come out by one processing step, ensure the qulity of these parts. 2. All the transmission parts such as the ball screw, linear guide rail, gear and rack are imported from Germany, the HSD spindle is imported from Italy, ensure the smooth movement, the stable and high processing accuracy, high productivity and endurance. 3. The vacuum system is adopted to make it easy to fix or unload. 4. Auto lubricant system ensure all the inner transmitting parts can be lubricated periodically. 5. the frozen mist spraying system is adopted to cool the cutting tool to raise its service life and workpieces’ accuracy. Model SpecificationDX25L Working area(x,y,z)1250*2500*150mm X, Y StructureRack and linear guide rail imported from Germany Z StructureBall screw and guide rail imported from Germany Repositioning Accuracy0.01mm X,Y max. speed30m/min Z max.speed15m/min Spindle motor3kw inverter-driven, cooled by air. rotate speed24,000 rpm/min Working modeStep-by-step motor and driver Control systemNcstudio control system within Win98/Win2000/XP File formatHPGL, G-code, CAD, PLT, NC cutter3.175/6/12.7mm Packing dimensions3950*1920*1500mm Weight2000kg Available installs: 1. Auto tool changer with 6 bits 2. Syntec control system, Mitsubishi control system or Fanuc control system 3. Auto cutting tool calibrator 4. Vacuum table
